Single-mode Pigtail PG-51S2 (SC, 1m G.657A2)

The ULTIMODE PG-51S2 pigtail is a section of single-mode fiber optic cable with a length of 1 meter, terminated on one end with SC connector.

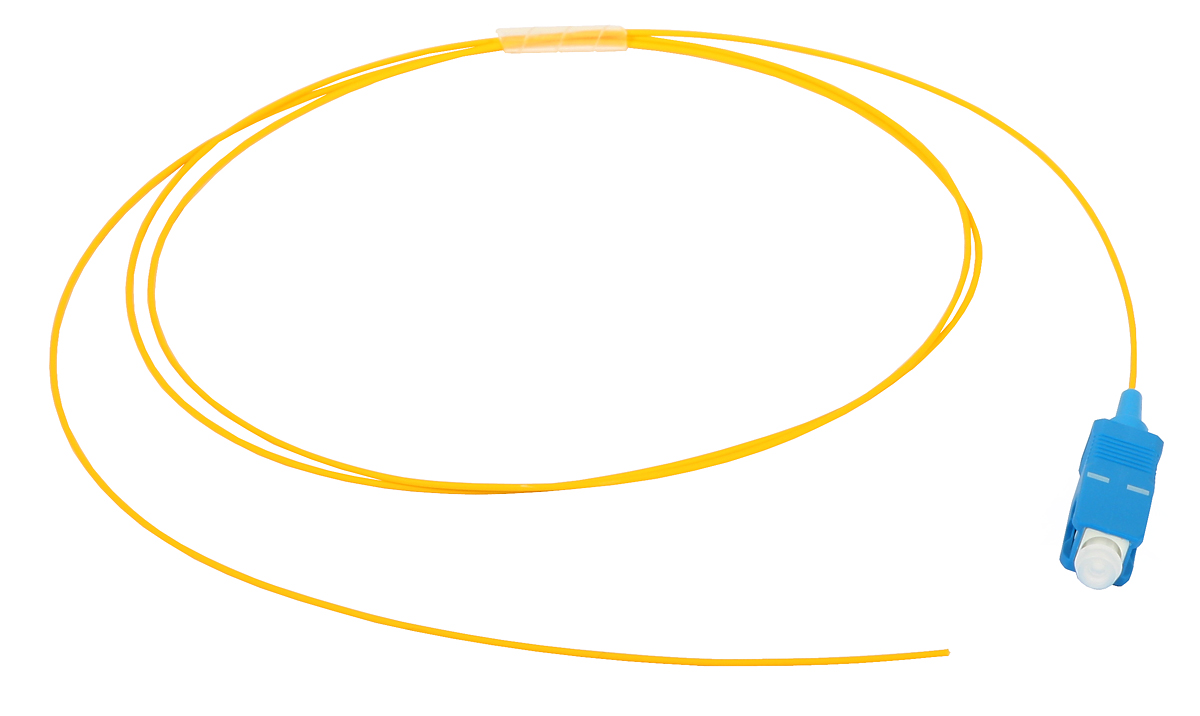

View of the pigtail

View of the SC connector and the other end of the pigtail

• SC connector
• single-mode G.657A2 fiber
• length: 1 m
• low loss

The ULTIMODE PG-51S2 pigtail is a section of single-mode fiber optic cable with a length of 1 meter, terminated on one end with SC connector. SC connectors are currently the most popular optical coupling elements due to simple matching (push-pull coupling with a snap), rectangular cross-section allowing dense packing of the connectors on the panel, and plastic construction (of course outside the ferrule).

ULTIMODE pigtails are characterized by low attenuation and back reflection (reflectance). They use highest quality ferrules. Each pigtail passes individual quality control (inspection of surfaces and measurement of transmission parameters - insertion and return loss).

The G.657.A2 fiber can be formed into tight coils due to reduced attenuation in such conditions, whereas other parameters are even a little better than in the case of G.652D. Thanks to this feature (smaller allowable bending radius), pigtails and patch cords based on G.657.A2 fiber are more reliable in densely packed installations.

Name	ULTIMODE PG-51S2
Code	L35511
Length	1 m
Fiber type	1x single-mode, 9/125
Connector	SC
Insertion loss [dB]	< 0.25
Return loss [dB]	> 50
