Single-mode pigtail set 4 pcs, PG-371C-1 LC/UPC, G,657,A1, 1m, aqua, black, orange, pink

Name: Single-mode pigtail set 4 pcs, PG-371C-1 LC/UPC, G,657,A1, 1m, aqua, black, orange, pink
Brand: ULTIMODE
SKU: 98054
Price: 99.10 CZK
Availability: InStock

Výrobce

ULTIMODE

Kód

L34371C

Dostupnost

Dostupnost na pobočkách

HLS

MOP

DIP

Vaše cena bez DPH

82 Kč

DPH

21%

Vaše cena s DPH

99 Kč

Záruka

3 Roky

Objednat

Porovnat Nastavit hlídacího psa Tisk

Podrobnosti o produktu

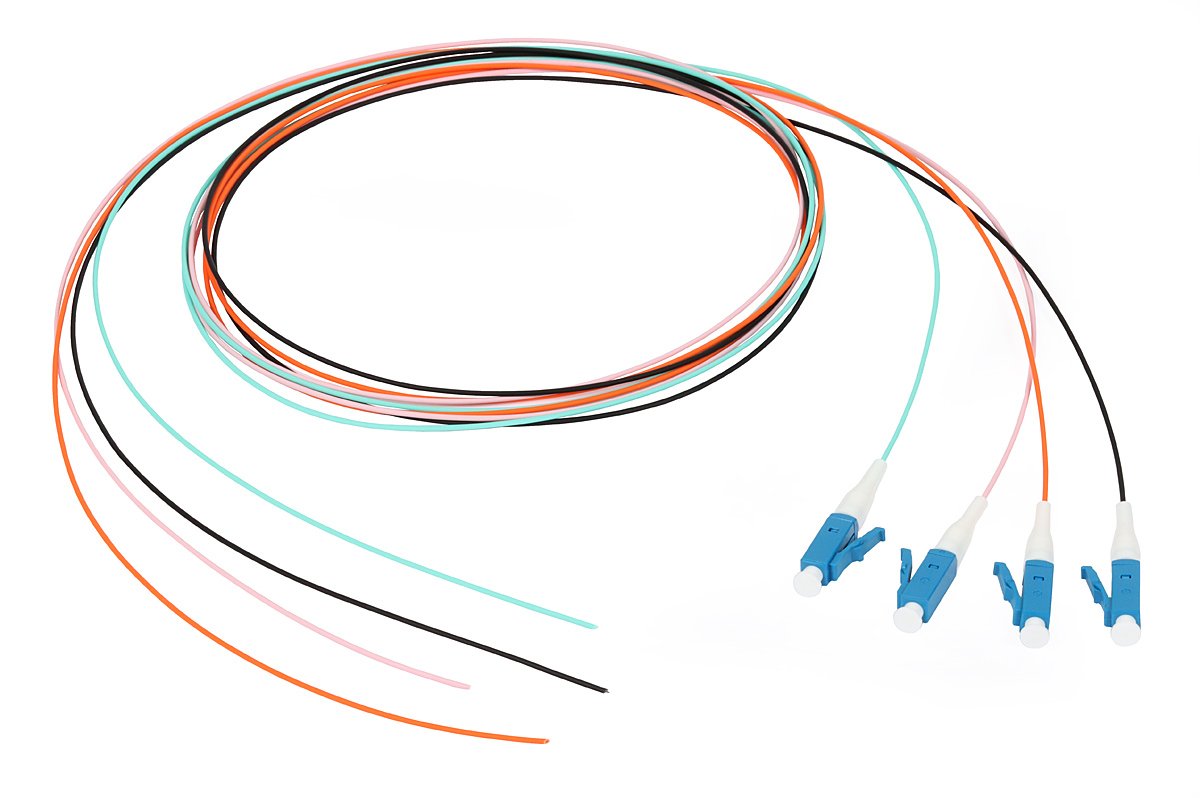

A set of 4 LC/UPC pigtails with a length of 2 m in the following colors: aqua, black, orange, pink.

Ultimode coloured pigtail sets enable the aesthetic termination of fibre optic routes. The colours can be used for quick identification of individual connections in large switching stations (no need for a visual fault locator to identify a fibre that needs to be rewelded) or to identify signals and services in a given fibre (e.g. camera 1, camera 2, etc.).

The set includes 4 PG-371C-1 pigtails, 2 meter long, terminated with an LC/UPC connector. Colors: aqua, black, orange, pink. Under other items you can find pigtails in other colors (12 colors in total): L34371A (red, green, blue, yellow) and L34371B (white, gray, brown, purple).

ULTIMODE pigtails are manufactured and tested in accordance with the guidelines of the International Electrotechnical Commission IEC 613000-3-34 and IEC 61300-3-6. Each pigtail is accompanied by an appropriate label confirming compliance of the parameters (insertion loss and reflection loss) with the class defined by the above-mentioned. norms. Fiber produced in accordance with the ITU-T G.657 (11/2016) or ITU-T G.652 (11/2016) recommendation.

Attenuation grades for connectors according to IEC 61300-3-34
Grade	Attenuation [dB]
A	< 0,07 mean	< 0,15 max.
B	< 0,12 mean	< 0,25 max.
C	< 0,25 mean	< 0,50 max.
D	< 0,50 mean	< 1,00 max.

Attenuation grades for connectors according to IEC 61300-3-34
Grade	Attenuation [dB]
A	< 0,07 mean	< 0,15 max.
B	< 0,12 mean	< 0,25 max.
C	< 0,25 mean	< 0,50 max.
D	< 0,50 mean	< 1,00 max.

Pigtail type "easy strip" - stripping the 900 µm coating is very easy. Just cut the coating anywhere you want, then slide it off the fiber. LSZH halogen-free coating (Low Smoke Zero Halogen).

Key features:

4 pcs of pigtails
colors: aqua, black, orange, pink
LC/UPC connector
length - 2 m
G.657.A1 single-mode fiber
LSZH jacket
attenuation < 0.25 dB (Grade B)
reflection loss > 50 dB (Grade 2)
